Two connectors that mate are not always two connectors that seal

The best MC4 connectors for 2026

MC4 is the connector every solar panel ends in, and the name has become generic in a way that matters: connectors from two makers usually mate, and the seal and the contact pressure they were designed for are not guaranteed to survive that pairing. The specifications to read are the rated current and the rated voltage — 1 000 V or 1 500 V systems are different worlds — and the cable cross-sections the crimp barrel accepts, usually given in square millimetres with a matching AWG. The ingress rating applies to a connector that is mated and correctly tightened; an unmated one is open, which is why blanking caps exist. Contact material is copper with tin or silver plating, and the plating is what keeps the resistance low after a few seasons outdoors. Certification marks are the honest way to separate the shelf, because everything looks identical in a photograph. Whether the set can be assembled by hand or needs a crimping tool and a spanner is a practical specification, and the answer is almost always the tool. We compare rated current and voltage, accepted cross-sections, ingress rating, contact plating, certifications and required tools.

Every part on this shelf, side by side

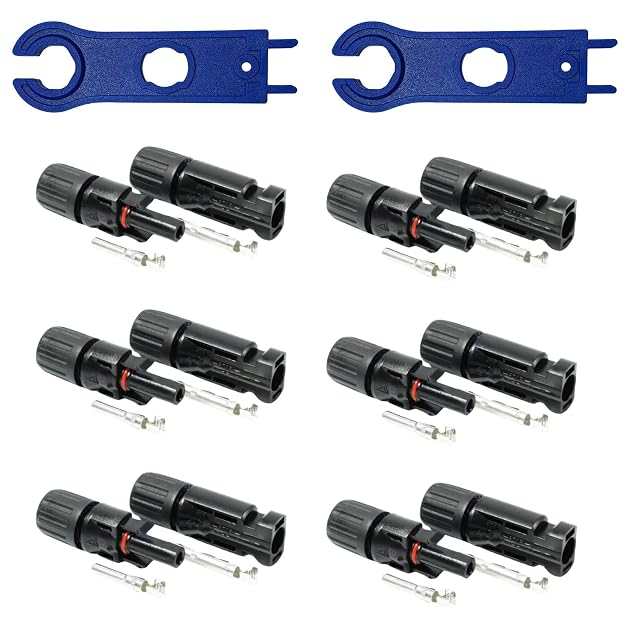

  1. solartronics solar connector set with crimp contacts and spanners

    solartronics Six pairs, PPO, IP67, with crimp contacts and two spanners

    Six pairs of solar connectors with tinned copper crimp contacts and two assembly spanners, in flame-retardant PPO rated from −40 °C to +90 °C.

    Rated current
    Nowhere in the listing
    Voltage
    Nowhere in the listing
    Accepted cross-sections
    4 mm² and 6 mm², third bullet
    Ingress rating
    IP67, from the title
    Contact plating
    Tinned copper crimp sleeves, second bullet
    Certifications
    Absent — described as compatible with MC4 connectors, which is a product designation rather than a standard
    Required tools
    Two assembly spanners are included; a crimping tool is not
    Amazon reference
    B0DVZKD81W (same reference on 5 Amazon marketplaces)
    EAN
    4068508012266
    • Two assembly spanners in the box, which are needed to tighten the housings and are frequently a separate purchase
    • An operating range published at both ends — −40 °C to +90 °C
    • No current rating and no voltage rating at all

    Best for: A first solar run where the crimping tool is already owned.

    ≈ €7
    Check price on Amazon

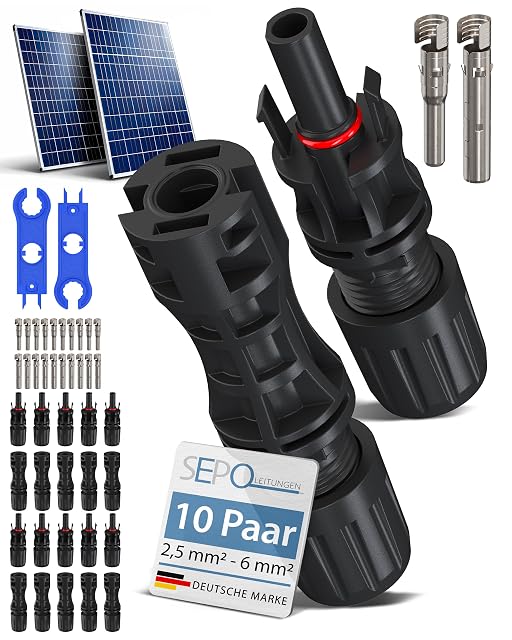

  2. SEPO-LEITUNGEN ten-pair MC4 solar connector set

    SEPO-LEITUNGEN Ten pairs with two tools, IP67, for 4 and 6 mm²

    Ten pairs of solar connectors supplied with two assembly tools, rated IP67 and described as UV-resistant, for 4 and 6 mm² cable.

    Rated current
    Nowhere in the listing
    Voltage
    Nowhere in the listing
    Accepted cross-sections
    4 mm² and 6 mm², third bullet
    Ingress rating
    IP67, described as resistant to rain, dust and UV, second bullet
    Contact plating
    Nowhere in the listing
    Certifications
    Absent — described as compatible with common PV systems and as a replacement for common solar connectors
    Required tools
    Two assembly tools included; a crimping tool is not
    Amazon reference
    B0F3XHPFJD (same reference on 5 Amazon marketplaces)
    EAN
    4262413910543
    • Ten pairs, enough for a whole small array including spares
    • UV resistance named alongside the ingress rating, which matters on a roof
    • No current rating, no voltage rating and no contact material

    Best for: A full array where ten pairs and spares are needed in one purchase.

    ≈ €11
    Check price on Amazon

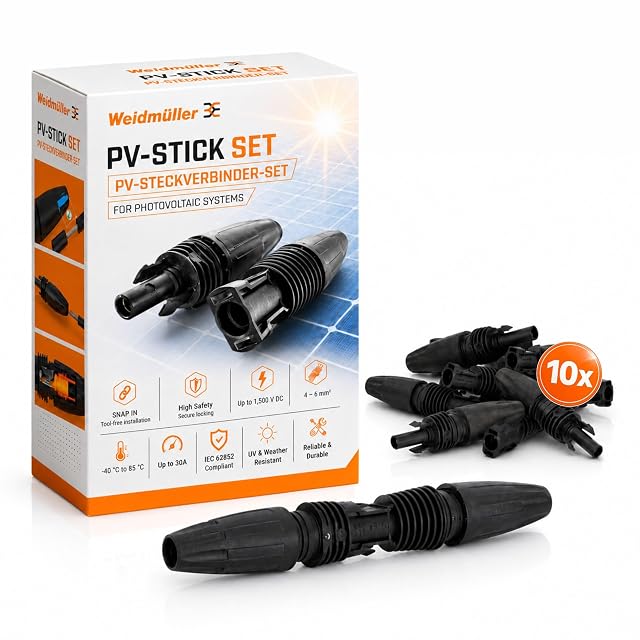

  3. Weidmüller PV-Stick snap-in photovoltaic connectors

    Weidmüller PV-Stick snap-in, 1500 V, 30 A, IEC 62852, ten pieces

    Ten snap-in photovoltaic connectors conforming to IEC 62852 at 1500 V DC and 30 A, fitted without crimping, operating from −40 °C to 85 °C.

    Rated current
    30 A maximum, third bullet — the only current rating published by any connector here
    Voltage
    1500 V DC, first bullet
    Accepted cross-sections
    4 mm² to 6 mm², second bullet
    Ingress rating
    Nowhere in the listing
    Contact plating
    Nowhere in the listing
    Certifications
    Conforming to IEC 62852, first bullet — the standard that defines photovoltaic connectors
    Required tools
    None — SNAP-IN technology locks without crimping, second bullet
    Amazon reference
    B0BXVG32H7 (same reference on 6 Amazon marketplaces)
    EAN
    4262389435040
    • It cites IEC 62852, the standard that actually defines photovoltaic connectors
    • Current and voltage both published — 30 A and 1500 V DC
    • No ingress rating published, which both cheaper sets here give

    Best for: An installation where the connector rating has to be documented rather than assumed.

    ≈ £76 / €64
    Check price on Amazon
