Genderless housings, and a contact that has to match the cable

The best Anderson connectors for 2026

An Anderson-style connector is the genderless housing found on leisure batteries, solar bags and vehicle sockets: two identical halves that slide together, with a flat contact inside that carries the current. The current rating belongs to the housing size — the common sizes step from around fifty amps to several hundred — and the colour is a coding convention that prevents a 12 V lead being plugged into a 24 V one, since housings of different colours in the same family will mate mechanically but are meant not to be. The contact is sold separately in some listings and is sized for a cable range; a contact crimped onto a cable outside that range is the usual failure. Mating cycles are published because these are designed to be unplugged often, unlike a ring terminal. The shelf also carries accessories that decide how usable the system is: dust caps, panel mounts, strain reliefs and the crimping tool that matches the contact. We compare current rating, housing size and colour coding, contact material and crimp range, mating cycles and available accessories.

Every part on this shelf, side by side

  1. CMBXAQ blue Anderson-type battery connectors with dust covers

    CMBXAQ Six housings and twelve contacts, 50 A, 600 V, with dust covers

    Six blue quick-connect battery housings with twelve contacts, rated 50 A and 600 V, supplied with rubber covers against dust and moisture.

    Current rating
    50 A at 600 V, second bullet
    Housing size
    Absent as a designation; the housings are blue, first bullet
    Colour coding
    Blue — housing colour prevents accidental mating between circuits of different voltages
    Contact material
    Nowhere in the listing
    Crimp range
    6 to 10 mm², second bullet
    Mating cycles
    Nowhere in the listing
    Available accessories
    Rubber covers against dust and moisture, third bullet
    Amazon reference
    B0GY3YCGB9 (same reference on 2 Amazon marketplaces)
    EAN
    6920702374466
    • Dust and moisture covers supplied, which are usually a separate purchase
    • Six housings and twelve contacts, so every housing has both halves
    • No contact material, which decides the resistance of the joint

    Best for: A van or a trailer where connections are made and broken and want covering when parted.

    ≈ €10
    Check price on Amazon

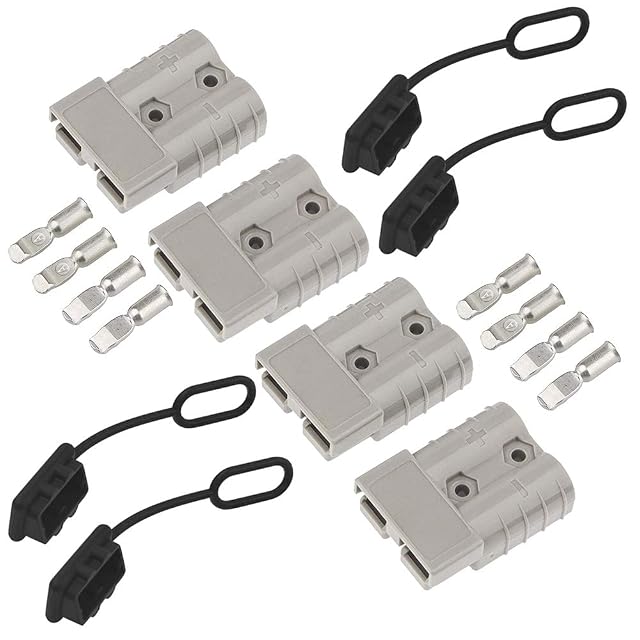

  2. GTIWUNG 50 A battery quick connectors

    GTIWUNG 50 A 600 V connectors for 6 to 8 AWG, 12 to 36 V

    Quick-connect battery connectors rated 50 A and 600 V for 6 to 8 AWG cable and 12 to 36 V systems, with contacts that may be soldered or crimped.

    Current rating
    50 A, first bullet, for 12 to 36 V systems
    Housing size
    Nowhere in the listing
    Colour coding
    Nowhere in the listing
    Contact material
    Nowhere in the listing
    Crimp range
    6 to 8 AWG, first bullet — published in AWG only, with no mm² equivalent
    Mating cycles
    Nowhere in the listing
    Available accessories
    None listed
    Amazon reference
    B089SV3N66 (same reference on 6 Amazon marketplaces)
    EAN
    0742089639442
    • A system voltage range is published — 12 to 36 V — which the others here omit
    • The intended uses are named: winches, trailers and other electrical equipment
    • The cable range is given in AWG only on a German listing

    Best for: A winch lead on a vehicle where the connector is made up once and left.

    ≈ £9 / €10
    Check price on Amazon

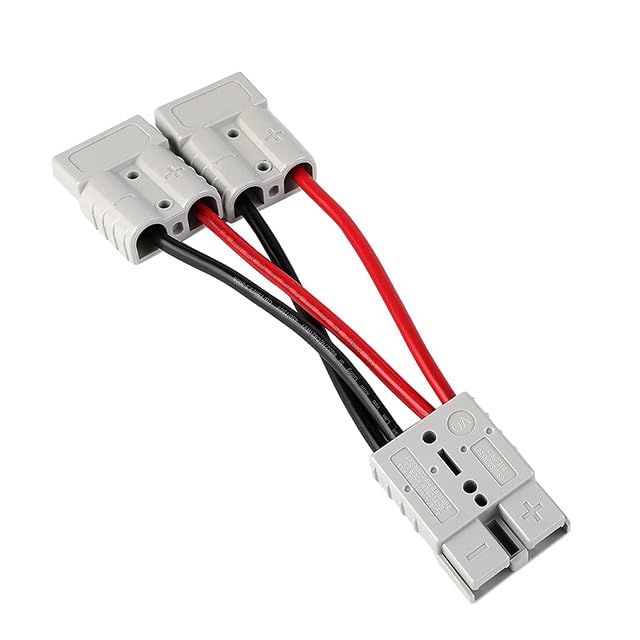

  3. Offgridtec Anderson parallel adapter lead for solar modules

    Offgridtec 20 cm 9 AWG parallel adapter lead, Anderson 50 A both ends

    A 20 cm ready-made adapter lead in 9 AWG with 50 A Anderson connectors at both ends, for paralleling two folding solar modules.

    Current rating
    50 A Anderson connectors at both ends, third bullet
    Housing size
    Nowhere in the listing
    Colour coding
    Nowhere in the listing
    Contact material
    Nowhere in the listing
    Crimp range
    Not applicable — the lead is supplied made up in 9 AWG
    Mating cycles
    Nowhere in the listing
    Available accessories
    None — this is a finished lead, plug and play, second bullet
    Amazon reference
    B09BCY6CVY (same reference on 6 Amazon marketplaces)
    EAN
    4260737980228
    • Supplied made up, so no crimping tool and no crimping skill are required
    • A stated compatibility with folding solar modules of a named range
    • A parallel connection is not always the right one — series and parallel suit different controllers

    Best for: Two folding panels standing side by side, feeding one controller.

    ≈ £13 / €10
    Check price on Amazon

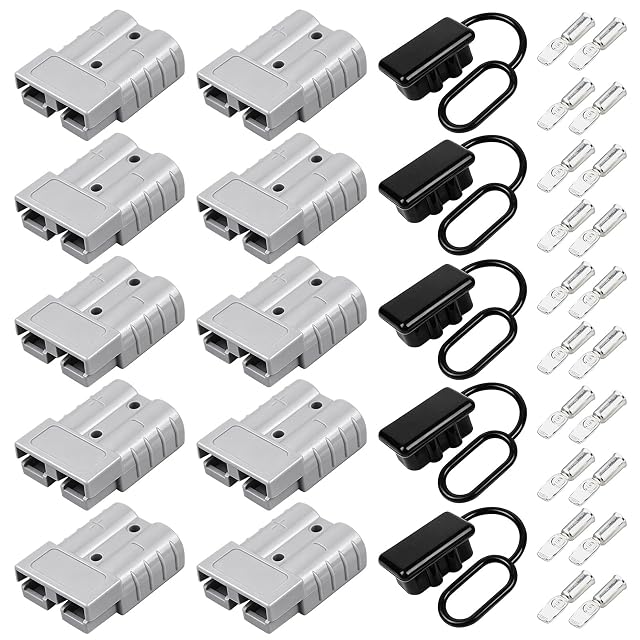

  4. VETOLAKA 50 A battery connectors with dust caps

    VETOLAKA Ten housings, 50 A, 600 V, flame-retardant PC, dust caps

    Ten 50 A quick-connect battery housings in flame-retardant polycarbonate rated 600 V, with a twin-pole design and dust caps included.

    Current rating
    50 A maximum at 600 V, first bullet
    Housing size
    Nowhere in the listing
    Colour coding
    Nowhere in the listing
    Contact material
    Absent — the housing is flame-retardant polycarbonate, first bullet
    Crimp range
    Nowhere in the listing
    Mating cycles
    Nowhere in the listing
    Available accessories
    Dust caps, from the title
    Amazon reference
    B0H2CMFKMR (same reference on 5 Amazon marketplaces)
    EAN
    0712112588757
    • The housing material is named and described as flame-retardant
    • Ten housings with dust caps, enough for several circuits
    • No crimp range at all, so the cable it accepts is unknown

    Best for: A workshop stock of connectors where the cable size is already known.

    ≈ €14
    Check price on Amazon

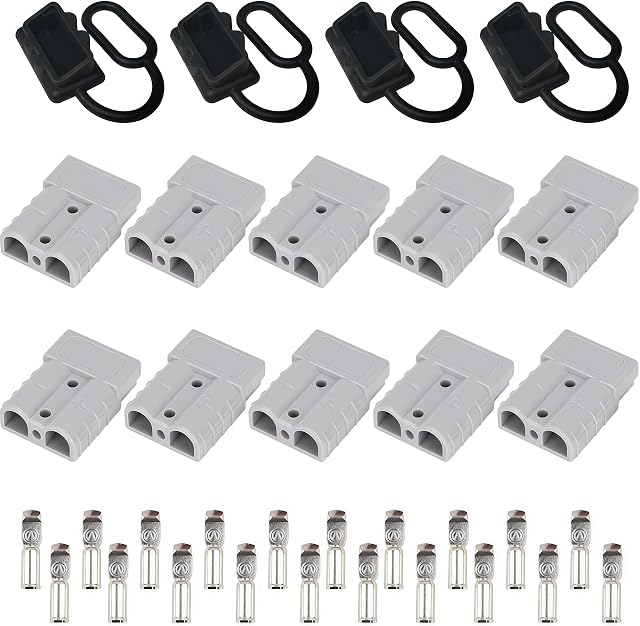

  5. Mixyvic 50 A battery quick connectors

    Mixyvic Ten housings, 50 A, 600 V, 6 AWG to 13.3 mm², 10 000 cycles

    Ten 50 A battery connectors rated 600 V for 6 AWG cable, published with 10 000 mating cycles under load, a 15 lbf insertion force and a −20 °C to 105 °C range.

    Current rating
    50 A at a maximum of 600 V, first bullet
    Housing size
    Nowhere in the listing
    Colour coding
    Nowhere in the listing
    Contact material
    Nowhere in the listing
    Crimp range
    6 B&S / 6 AWG, up to 13.3 mm², first bullet — the only connector here to give both conventions
    Mating cycles
    10 000 cycles under load, and 250 hot-plug cycles at 120 V, second bullet — the ONLY cycle figure in this family
    Available accessories
    None listed; a mean insertion force of 15 lbf and an operating range of −20 °C to 105 °C are published
    Amazon reference
    B0GFS6SX42 (same reference on 5 Amazon marketplaces)
    EAN
    0602693246293
    • A mating cycle count is published, and separately for hot plugging under load
    • The crimp range is given in both AWG and mm²
    • The insertion force is given in pounds-force on a German listing

    Best for: A connection made and broken daily, where the cycle count is the specification.

    ≈ €16
    Check price on Amazon
