Cigarette, DIN or USB-C, and each has its own current limit

The best 12 V sockets for 2026

A 12 V socket is what turns a battery into something usable in a van, a boat or a workshop bench. The standard decides the plugs it accepts: the familiar cigarette-lighter type, the smaller DIN socket common on European vehicles, or a dedicated connector. Current rating is the limit and is usually between ten and twenty amps; the socket, the wire and the fuse have to agree, and the fuse is sized for the wire. Many units on this shelf add USB outputs, and there the useful specification is the same as on any charger — the wattage per port, whether it is shared, and which fast-charge protocols are supported, because a socket that claims USB-C and offers only 5 V charges a laptop not at all. Mounting is a cut-out diameter and a depth behind the panel, and both have to be checked against the space. Ingress rating with the cap closed matters outdoors, and the cap is the part that breaks. We compare socket standard, current rating, USB outputs and protocols, cut-out dimensions, ingress rating and wiring requirements.

Every part on this shelf, side by side

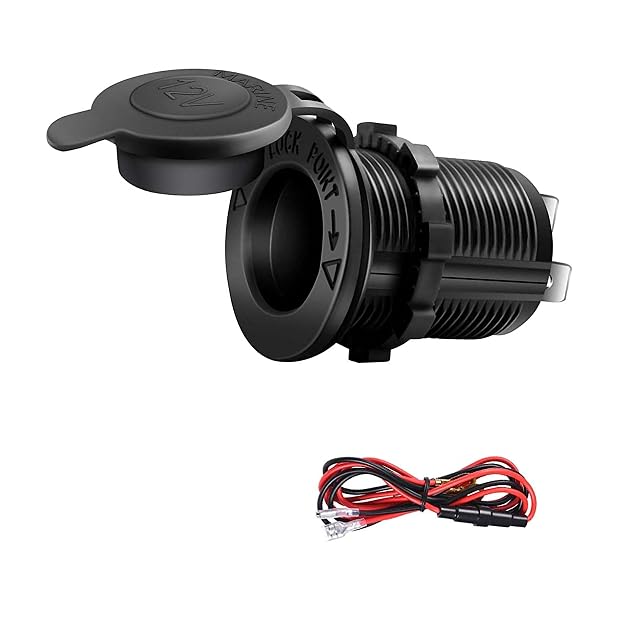

  1. PPpanda 12 V waterproof accessory socket with a lead and inline fuse

    PPpanda 12 V socket, 5 A, 0.6 m lead, inline fuse, waterproof cap

    A waterproof 12 V accessory socket with a 0.6 metre lead, an inline fuse and a retaining nut, for 12 to 24 V vehicles and boats.

    Socket standard
    A 12 V accessory socket; the listing states explicitly that it is NOT suitable for a cigarette lighter element and that inserting one would burn the socket, second bullet
    Current rating
    5 A, from the title
    USB outputs
    None
    Protocols
    None
    Cut-out dimensions
    Nowhere in the listing
    Ingress rating
    A waterproof and dustproof cover, fourth bullet; no IP figure is given
    Wiring requirements
    A red positive and black negative lead of 0.6 m with an inline fuse for overload protection; each socket is fixed to a panel with a retaining nut, third and fifth bullets
    Amazon reference
    B08524144H (same reference on 4 Amazon marketplaces)
    EAN
    0778836640034
    • It states plainly that a lighter element must not be used in it, and what happens if one is
    • An inline fuse is supplied on the lead rather than left to be added
    • 5 A is modest — the Dongge socket here carries 20 A

    Best for: A single low-power accessory outlet on a boat or a mower.

    ≈ €5
    Check price on Amazon

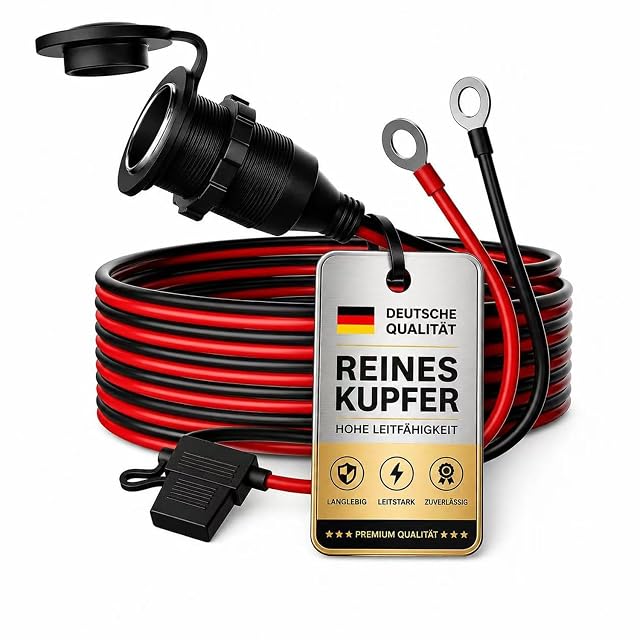

  2. RGBer 12 V accessory socket with ring terminals and an inline fuse

    RGBer 12/24 V socket with lead, fuse and ring terminals, weatherproof cap

    A 12 V and 24 V accessory socket with a lead, an integrated fuse and ring terminals for connecting directly to a battery.

    Socket standard
    A 12 V accessory socket, compatible with 12 V and 24 V, first bullet
    Current rating
    Nowhere in the listing
    USB outputs
    None
    Protocols
    None
    Cut-out dimensions
    Nowhere in the listing
    Ingress rating
    A cover against dust and moisture for indoor and outdoor installation, fourth bullet; no IP figure
    Wiring requirements
    Ring terminals allow the socket to be connected directly to the battery, second bullet; an integrated fuse protects against over-voltage and short circuit, third bullet
    Amazon reference
    B0FN3RKWDH (same reference on 5 Amazon marketplaces)
    EAN
    4260710960698
    • Ring terminals supplied, so the connection to a battery post needs no extra parts
    • An integrated fuse rather than an afterthought
    • No current rating at all, which is the first question about a socket

    Best for: A motorcycle or camper outlet wired straight to the battery.

    ≈ €8
    Check price on Amazon

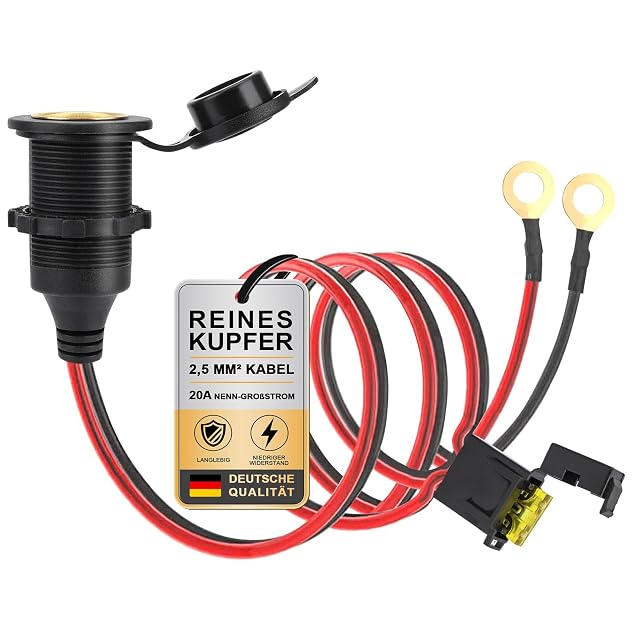

  3. Dongge marine grade 12 V socket with a heavy lead and fuse holder

    Dongge Marine grade, 12–24 V, 20 A, 1 m of 2.5 mm², 20 A fuse, 8.2 mm rings

    A heavy-duty marine grade 12 to 24 V socket rated 20 A, with a one-metre 2.5 mm² lead, a built-in 20 A fuse and 8.2 mm ring terminals.

    Socket standard
    A 12 V to 24 V DC accessory socket, described as marine grade, first bullet
    Current rating
    20 A, first bullet — four times the PPpanda socket in this family
    USB outputs
    None
    Protocols
    None
    Cut-out dimensions
    Nowhere in the listing
    Ingress rating
    Splash-protected and dustproof, fourth bullet; no IP figure is given
    Wiring requirements
    1 m of 2.5 mm² cable supporting 20 A, with a fuse box carrying a built-in 20 A fuse; ring terminals with an 8.2 mm internal diameter, red for positive and black for negative, first to third bullets
    Amazon reference
    B095LQHKSQ (same reference on 6 Amazon marketplaces)
    EAN
    0769256680960
    • The lead cross-section is published — 2.5 mm² — and it matches the 20 A rating
    • A 20 A fuse is already in the fuse box, not left to be bought
    • No IP figure behind the marine grade claim

    Best for: A compressor or a cool box outlet that has to carry real current.

    ≈ £9 / €11
    Check price on Amazon

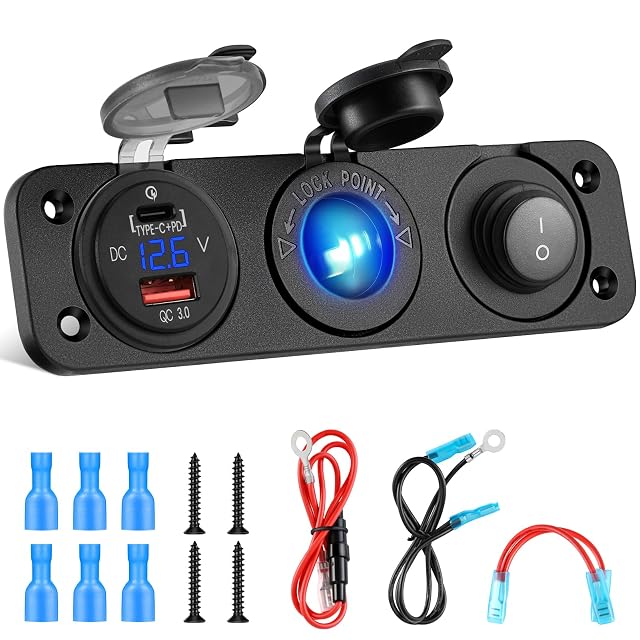

  4. Kohree 12 V panel socket with USB-C, QC 3.0 ports and a voltage display

    Kohree 12 V panel socket with USB-C PD and dual QC 3.0, LED voltmeter, toggle

    A panel-mounted 12 V socket with a USB-C PD port and QC 3.0 USB outputs, an independent toggle switch and a built-in LED battery voltage display.

    Socket standard
    A panel-mounted 12 V outlet with integrated USB charging, from the title
    Current rating
    Nowhere in the listing
    USB outputs
    A USB-C Power Delivery port and dual QC 3.0 USB outputs, first and third bullets
    Protocols
    USB Power Delivery on the Type-C port and Quick Charge 3.0 on the USB ports, stated as up to four times faster than conventional charging and 40 % more efficient than QC 2.0, third bullet
    Cut-out dimensions
    Nowhere in the listing
    Ingress rating
    A fully sealed construction is described, second bullet; no IP figure is given
    Wiring requirements
    An independent on/off toggle switch to save power and extend service life, second bullet; a built-in digital LED voltage monitor showing the vehicle battery voltage in real time, fourth bullet; PA, CSA and PA66 materials with heat, wear and oxidation resistance, fifth bullet
    Amazon reference
    B09CKQJQDT (same reference on 6 Amazon marketplaces)
    EAN
    0850077750557
    • A battery voltmeter built in, which turns an outlet into a diagnostic
    • Both modern charging protocols: USB-C Power Delivery and QC 3.0
    • No current rating for the 12 V outlet itself

    Best for: A camper dashboard where phones charge and the battery needs watching.

    ≈ $18 / €18
    Check price on Amazon
