Wind load is the specification, and it is rarely printed

The best solar panel mounts for 2026

A mount holds a panel at an angle and has to survive the weather doing it. The specifications a maker publishes are the panel sizes and weight supported, the tilt range and whether it adjusts seasonally, the material — anodised aluminium and stainless fasteners on the serious ones — and the fixing method, which is the part that must match the surface: roof hooks for tiles, adhesive pads or rivets for a van roof, ballast trays for a flat roof that must not be drilled. The specification that decides whether a mount is adequate, wind load, is the one least often printed, and where a maker does publish it the figure comes with an assumed installation. A panel is a sail: the same bracket that is ample on a sheltered wall is not on an exposed corner, and local rules may have something to say about anything fixed to a building. Corrosion is the slow failure, and it starts where a stainless bolt meets an aluminium rail without a washer between them. We compare supported panel sizes and weight, tilt adjustment, material and corrosion resistance, fixing method and any stated wind load.

Every part on this shelf, side by side

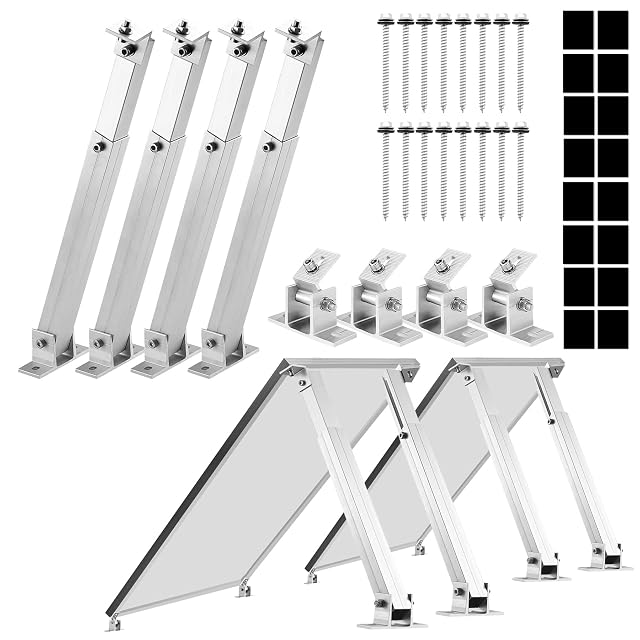

  1. Generisch adjustable solar panel mounting frame in aluminium

    Generisch Two-panel flat-roof set, 15°–30°, AL6005-T5, 2.0 mm

    An adjustable 15 to 30 degree mounting set for two solar panels, in 2.0 mm AL6005-T5 aluminium with SUS304 stainless screws and rubber pads.

    Supported panel sizes
    Two panels, from the title; no panel dimensions are published
    Weight
    Nowhere in the listing
    Tilt adjustment
    15° to 30°, fifth bullet
    Material
    AL6005-T5 aluminium at 2.0 mm material thickness, first and second bullets
    Corrosion resistance
    SUS304 stainless steel screws and nuts, third bullet; no coating is stated for the aluminium
    Fixing method
    Flat roof, wall or universal mounting, from the title; 35 × 35 × 2 mm rubber pads, fourth bullet
    Any stated wind load
    NOWHERE IN THE LISTING — no wind speed, wind zone or standard appears anywhere in the listing
    Amazon reference
    B0F1N6C2WY (same reference on 6 Amazon marketplaces)
    EAN
    5904335423259
    • Both alloys named by designation: AL6005-T5 and SUS304
    • The material thickness is published — 2.0 mm
    • No wind load, like every other mount in this catalogue

    Best for: A flat roof or a wall where the panel dimensions are already known to fit.

    ≈ €39
    Check price on Amazon

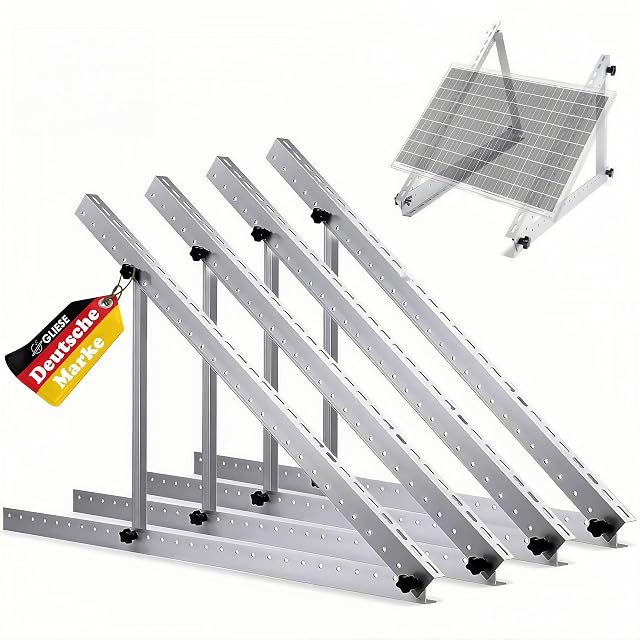

  2. GLIESE aluminium solar panel mounting rails with adjustable angle

    GLIESE Four rails of 1140 mm, 0°–90°, for panels to 115 cm, 100–600 W

    A four-piece aluminium mounting set with 1140 mm rails adjustable from 0 to 90 degrees, for panels to about 115 cm and roughly 100 to 600 watts.

    Supported panel sizes
    Panels to about 115 cm and roughly 100 to 600 watts, mountable horizontally or vertically, third bullet
    Weight
    Nowhere in the listing
    Tilt adjustment
    0° to 90°, from the title — the full range, shared only with the V-CANT-C mount here
    Material
    High-strength aluminium rails in a set of four, first bullet
    Corrosion resistance
    Described as torsion-resistant and corrosion-resistant, second bullet; no alloy or coating is named
    Fixing method
    Flat roof, garage roof, balcony, balcony railing, wall, façade, boats, camping and motorhomes, fourth bullet
    Any stated wind load
    NOWHERE IN THE LISTING — no wind speed, wind zone or standard appears anywhere in the listing
    Amazon reference
    DE B0C2Q278N2 · US B0C2Q278N2 · FR B0C2Q4MG28 · IT B0C2Q4MG28 · ES B0C2Q4MG28
    EAN
    0793127980880
    • The contents are listed piece by piece with dimensions: eight 1140 mm rails, four 545 mm U-rails, M8 × 20 bolts
    • 0° to 90°, so the panel can be laid flat or stood vertical
    • No wind load

    Best for: A flat roof or a wall where the panel is under 115 cm on its mounting edge.

    ≈ €42
    Check price on Amazon

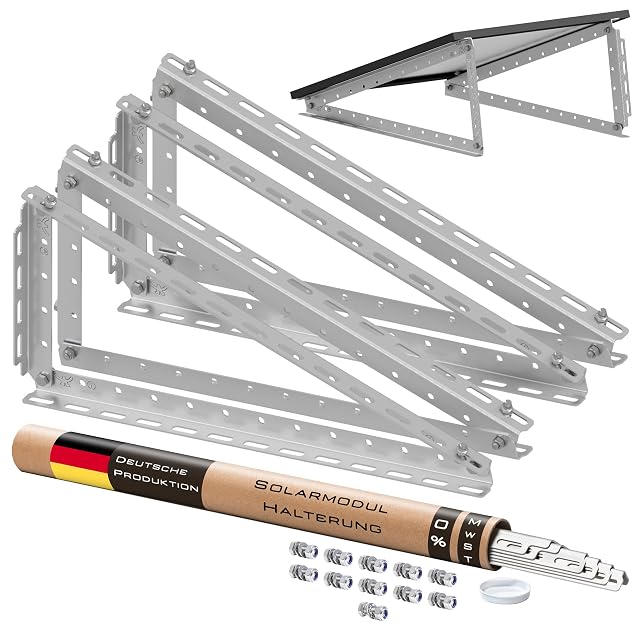

  3. V-CANT-C solar panel mounting triangles in aluminium

    V-CANT-C Four triangles, 0°–90°, 2.5 mm material, panels to 114.5 cm, made in Germany

    A set of four mounting triangles in 2.5 mm material for panels to 114.5 cm, adjustable from 0 to 90 degrees by hole position, made in Germany.

    Supported panel sizes
    Panels to 114.5 cm, from the title
    Weight
    Nowhere in the listing
    Tilt adjustment
    0° to 90°, set by an arrangement of hole combinations, second bullet
    Material
    2.5 mm material thickness, first bullet — THE THICKEST PUBLISHED In this catalogue
    Corrosion resistance
    Nowhere in the listing
    Fixing method
    Four mounting triangles with two complete fixing sets, fifth bullet; for flat roofs, balcony installations and walls
    Any stated wind load
    NOWHERE IN THE LISTING — the listing states each fixing is individually inspected after production, without saying against what
    Amazon reference
    B0CGVSXPKT (same reference on 6 Amazon marketplaces)
    EAN
    4270003794718
    • 2.5 mm material, thicker than any other mount here that publishes a figure
    • Engineered and produced in Germany, with each unit inspected after production
    • No wind load, and the inspection is mentioned without saying what it checks

    Best for: A flat roof where the frame should be the strongest part of the installation.

    ≈ €60
    Check price on Amazon

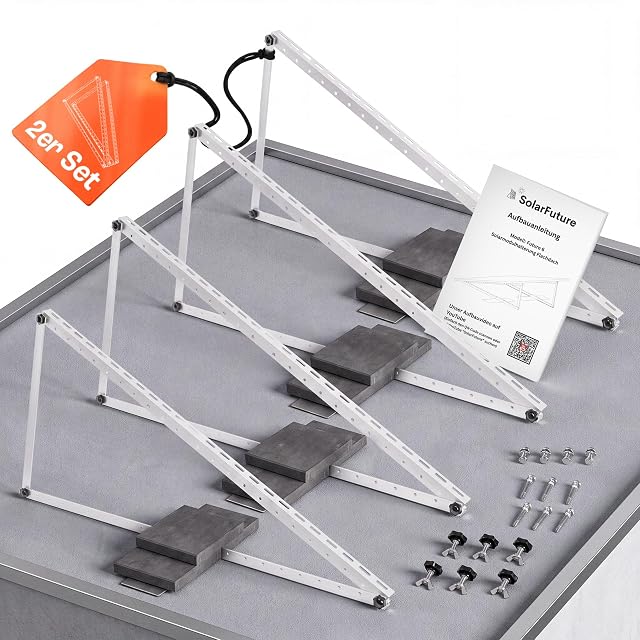

  4. SolarFuture ballasted flat roof solar mount in anodised aluminium

    SolarFuture Flat roof, no drilling, ballasted, anodised aluminium, to 135 kg

    A ballasted flat roof mount for two solar panels in anodised aluminium, carrying up to 135 kg of ballast without drilling the roof membrane.

    Supported panel sizes
    Panels to 114 cm high, regardless of length; a complete set for two panels, fourth bullet
    Weight
    The ballast element carries up to 135 kg, second bullet — THE ONLY LOAD FIGURE PUBLISHED BY ANY MOUNT In this catalogue
    Tilt adjustment
    Tilt and width both adjustable to suit the module, third bullet
    Material
    Massive anodised aluminium, second bullet
    Corrosion resistance
    Anodised, stated in the second bullet
    Fixing method
    Ballasted — a weighting element spreads the load of paving bricks over a wide area, so the roof membrane is never drilled, first bullet
    Any stated wind load
    NOWHERE IN THE LISTING — storm security is claimed in the first bullet without a wind speed or a standard
    Amazon reference
    B0H1NWLC58 (same reference on 5 Amazon marketplaces)
    EAN
    4270004153194
    • A published load figure — 135 kg of ballast — which nothing else in this catalogue gives
    • No drilling, so a flat roof membrane stays intact
    • No wind load, which is precisely what ballast is calculated against

    Best for: A flat roof that must not be penetrated, where bricks can be carried up.

    ≈ €70
    Check price on Amazon

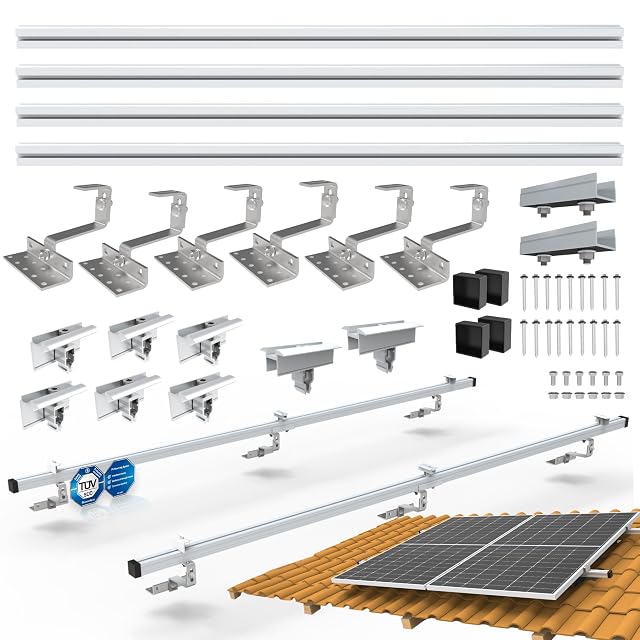

  5. NuaSol tiled roof solar mounting kit with roof hooks and rails

    NuaSol Tiled roof, 2 modules, roof hooks under the tiles, 1230 mm profiles

    A tiled roof mounting kit for two solar modules, fixing aluminium profiles under the tiles with roof hooks, with end and middle clamps and an expansion set.

    Supported panel sizes
    Two solar modules; no panel dimensions are published, first bullet
    Weight
    Nowhere in the listing
    Tilt adjustment
    None — a tiled roof mount follows the pitch of the roof
    Material
    Aluminium profile, second bullet
    Corrosion resistance
    Nowhere in the listing — no alloy, coating or stainless grade is named for the hooks
    Fixing method
    Roof hooks fitted directly under the tiles with supplied wood screws; modules held by end and middle clamps, second and third bullets
    Any stated wind load
    NOWHERE IN THE LISTING — no wind speed, wind zone or standard appears in the listing
    Amazon reference
    B0CBLYVL3L (same reference on 5 Amazon marketplaces)
    EAN
    4252023116251
    • Every component published with its dimensions — profile, connector, end clamp, end cap
    • An expansion set is offered, so a third module does not mean a second kit
    • No corrosion specification for the roof hooks, which is what rusts first

    Best for: A tiled roof where the profiles have to be planned before the tiles come off.

    ≈ €80
    Check price on Amazon

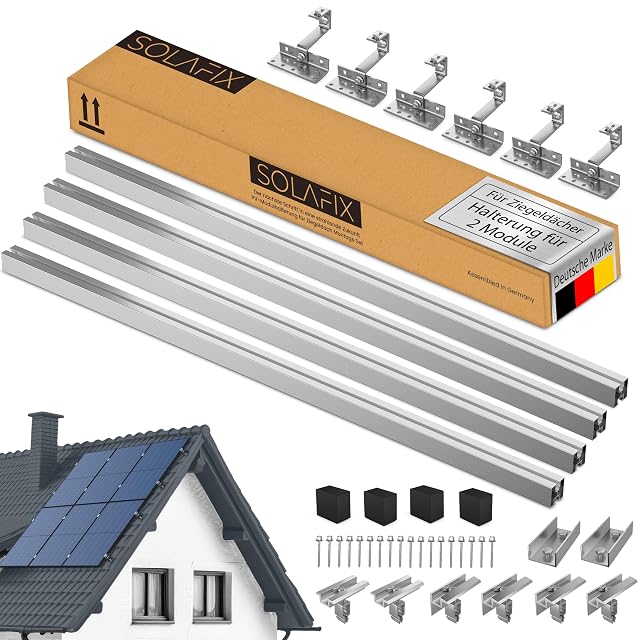

  6. SOLAFIX tiled roof mounting kit with stainless roof hooks and rails

    SOLAFIX Tiled roof, 2 modules 30–40 mm frame, EASY-CLICK clamps, 1.4301 hooks

    A tiled roof kit for two modules with 30 to 40 mm frames, using 1.4301 stainless roof hooks and AL6005-T5 aluminium profiles with pre-assembled clamps.

    Supported panel sizes
    Common solar modules with a frame height of 30 to 40 mm, third bullet
    Weight
    Nowhere in the listing
    Tilt adjustment
    None — a tiled roof mount follows the pitch of the roof
    Material
    Aluminium profiles in AL6005-T5, second bullet
    Corrosion resistance
    Corrosion-resistant roof hooks in 1.4301 stainless steel, second bullet — the grade is named
    Fixing method
    Six roof hooks with three wood screws each; pre-assembled components and EASY-CLICK clamps, first and fifth bullets
    Any stated wind load
    NOWHERE IN THE LISTING — tested and certified is claimed in the second bullet without naming a test or a body
    Amazon reference
    B0DH57LL1L (same reference on 5 Amazon marketplaces)
    EAN
    4270000212475
    • Both grades published: AL6005-T5 for the profiles and 1.4301 for the hooks
    • The frame height it fits is stated — 30 to 40 mm — which is the actual compatibility question
    • Tested and certified is claimed without naming the test or the certifying body

    Best for: A tiled roof where the module frame height has already been measured.

    ≈ €80
    Check price on Amazon

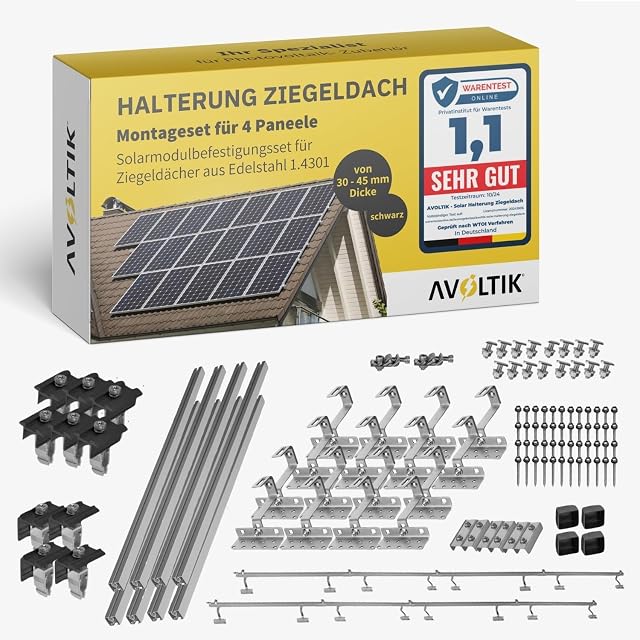

  7. avoltik tiled roof mounting set with stainless roof hooks and rails

    avoltik Tiled roof, 4 modules 30–45 mm, 16 triple-adjustable 1.4301 hooks, earthing clamps

    A tiled roof set for four modules with 30 to 45 mm frames, with sixteen triple-adjustable 1.4301 stainless roof hooks, eight rails and aluminium earthing clamps.

    Supported panel sizes
    Four modules with frame heights of 30 to 45 mm, second bullet
    Weight
    Nowhere in the listing
    Tilt adjustment
    None — a tiled roof mount follows the pitch of the roof; the roof hooks themselves are triple-adjustable, first bullet
    Material
    Eight 40 × 40 aluminium rails with six aluminium connectors and steel bolts, first bullet
    Corrosion resistance
    Stainless steel roof hooks in 1.4301, from the title; weather-resistant aluminium, third bullet
    Fixing method
    Sixteen triple-adjustable stainless roof hooks with an EASY-CLICK system on the middle and end clamps, first and second bullets
    Any stated wind load
    NOWHERE IN THE LISTING — no wind speed, wind zone or standard appears in the listing. ALUMINIUM EARTHING CLAMPS are included for bonding the array, fourth bullet
    Amazon reference
    B0D45T9KVT (same reference on 6 Amazon marketplaces)
    EAN
    4063811164503
    • Earthing clamps included, which no other mount in this catalogue supplies
    • Sixteen roof hooks, triple-adjustable, so an uneven tile course can still be followed
    • No wind load, on the largest and most expensive frame in this catalogue

    Best for: A four-module tiled roof array that has to be bonded as well as fixed.

    ≈ €190
    Check price on Amazon
