What earthing is required is decided by the rules, not by the kit

The best earthing kits for 2026

An earthing kit is a conductor, a set of clamps and often a rod, sold for solar frames, generator bodies and equipment cabinets. What it must achieve — and whether it is required at all — comes from the maker’s instructions and from the local electrical rules, which differ by country and by installation type; this page compares hardware and does not decide compliance. The hardware questions are concrete. Conductor cross-section is published in square millimetres and is usually specified by those same rules rather than chosen. Clamp types have to suit what they grip: a frame clamp with a piercing tooth for an anodised aluminium rail, a rod clamp, a lug for a busbar. Materials decide the life of the joint outdoors and, just as importantly, whether two dissimilar metals are put in contact — copper directly on aluminium corrodes at the joint, which is why bimetallic washers exist. Rod length and coupling matter where a rod is driven: rods are sold in sections with couplers, and the depth needed depends on the ground rather than on the box. We compare conductor cross-section, clamp types and materials, rod length and coupling, corrosion resistance and kit contents.

Every part on this shelf, side by side

1.

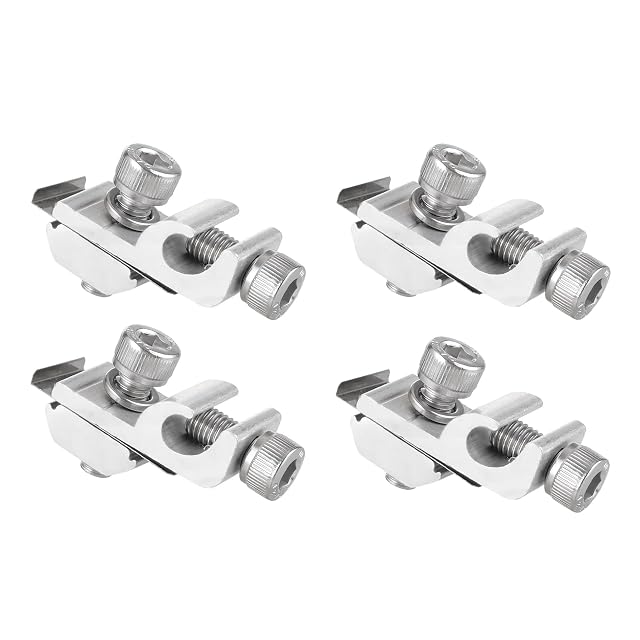

   Lunpog Four M8 aluminium earthing clips for module frames

   Four pre-assembled aluminium earthing clips in M8 for bonding a solar module frame to its aluminium mounting rail.

   Conductor cross-section

   Nowhere in the listing — no earthing conductor is supplied

   Clamp types

   Frame clips fitted at the clamping point or the screw joint between the module and the mounting rail, fifth bullet; M8, from the title

   Materials

   Aluminium with smooth edges, first bullet

   Rod length

   Absent — no earth rod is supplied

   Coupling

   Absent — no rod coupling is supplied

   Corrosion resistance

   Described as corrosion-resistant, rust-resistant, wear-resistant and UV-resistant, first bullet; no test or coating is named

   Kit contents

   Four clips, pre-assembled, from the title

   Amazon reference

   B0DN6JDFS4 (same reference on 6 Amazon marketplaces)

   EAN

   6219466107688

   • Pre-assembled, so they fit without dismantling anything
   • Aluminium, which is the same metal as the rail and the frame it joins
   • This is a clip, not a kit — no conductor, no rod, no coupling

   Best for: Bonding module frames to an aluminium rail that is already earthed.

   ≈ €8

   Check price on Amazon
2.

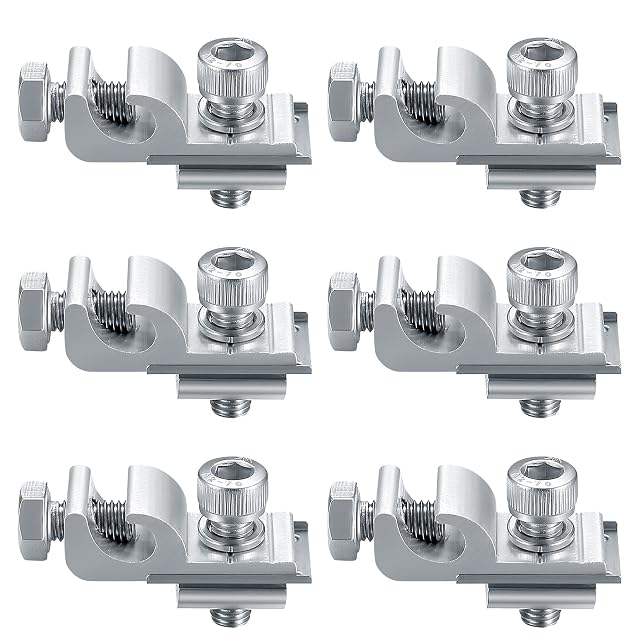

   Gaomoeny Six aluminium earthing clips for module frames, with cable link

   Six aluminium earthing clip sets for solar module mounting, connecting the modules to earth, compatible with aluminium PV rails and C, U and H profiles.

   Conductor cross-section

   Nowhere in the listing — the static bonding cable is named in the third bullet but no cross-section is given and none is supplied

   Clamp types

   Standard earthing clamps for solar modules, connecting the modules to earth, third bullet

   Materials

   Aluminium with smooth edges, first bullet

   Rod length

   Absent — no earth rod is supplied

   Coupling

   Absent — no rod coupling is supplied

   Corrosion resistance

   Described as corrosion-resistant, rust-resistant, wear-resistant and UV-resistant, first bullet; no test or coating is named

   Kit contents

   Six sets of earthing clamps, compatible with various aluminium photovoltaic rails, C-profiles, U-profiles and H-section steel, fifth bullet

   Amazon reference

   B0BKWF54QR (same reference on 5 Amazon marketplaces)

   EAN

   0676351868028

   • Six sets rather than four, and the rail profiles it suits are listed
   • The third bullet names what the clip connects — the modules’ static bonding cable to earth
   • The bonding cable is named and not supplied, and no cross-section is given

   Best for: A six-module array on aluminium rail or steel section.

   ≈ €10
