The fuse protects the cable, not the appliance

The best fuse holders for 2026

A fuse exists to stop a cable becoming a heating element, which is why it is sized from the conductor rather than from the load. That single idea decides most of this shelf. The fuse standard comes first — blade fuses for small circuits, ANL and MEGA for the big battery leads, glass and ceramic for older equipment — and each has its own physical format and its own current range. Voltage rating is where direct current bites: an AC fuse interrupts at every zero crossing, a DC arc has none, so a holder rated 250 V AC may be rated far lower for DC, and the DC figure is the one that counts here. The current rating of the holder must exceed the fuse it carries, and the terminal type must match the cable — stud, screw, or blade. Mounting and ingress rating decide where it can live: an engine bay wants a sealed holder, a locker tolerates an open one. Whether fuses are included, and at which ratings, is part of the price. We compare fuse standard, current and voltage ratings including DC, terminals, mounting, ingress rating and supplied fuses.

Every part on this shelf, side by side

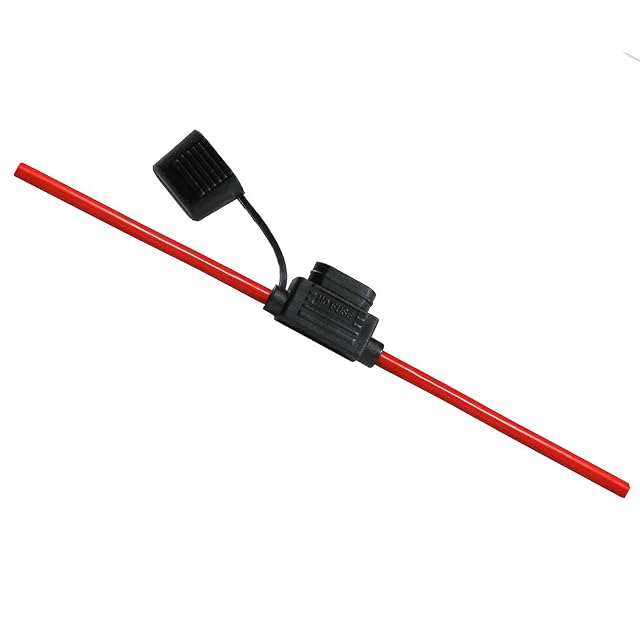

  1. Offgridtec inline blade fuse holder with a black rubber body

    Offgridtec Inline blade fuse holder, 30 A, 25 cm of 4 mm² lead

    A sealed inline blade fuse holder rated to 30 A, supplied pre-wired with 25 cm of 4 mm² cable in a rubber body with a waterproof lid.

    Fuse standard
    Standard ATC and blade fuses, third bullet
    Current
    Rated to 30 A, fifth bullet
    Voltage ratings including DC
    Nowhere in the listing — 12 V and 24 V systems are named as applications, which is not a rating
    Terminals
    Pre-wired with 25 cm of 4 mm² cable at both ends, fourth bullet — no crimping needed
    Mounting
    Inline, carried by the cable; no fixing described
    Ingress rating
    A fully sealed rubber body with a waterproof lid against water, dust and dirt, second bullet; no IP figure is given
    Supplied fuses
    None — the holder is supplied alone, one piece
    Amazon reference
    B077SGP5B3 (same reference on 5 Amazon marketplaces)
    EAN
    4250983245851
    • Pre-wired in 4 mm², which suits the 30 A rating rather than undercutting it
    • A sealed rubber body rather than a plastic clip-together cover
    • No voltage rating, on a component sold into 12 V and 24 V systems

    Best for: A single circuit tapped off a battery where the run is already cabled.

    ≈ €4
    Check price on Amazon

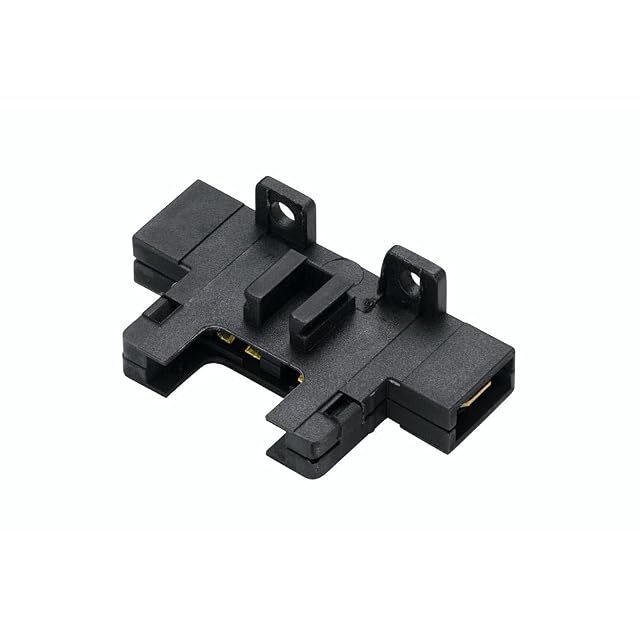

  2. HELLA fuse holder set of two in packaging

    HELLA Pair of fuse holders, original-equipment quality

    A set of two fuse holders described as original-equipment quality, intended for small retrofits and additions to vehicle wiring.

    Fuse standard
    Nowhere in the listing
    Current
    Nowhere in the listing
    Voltage ratings including DC
    Nowhere in the listing
    Terminals
    Nowhere in the listing
    Mounting
    Nowhere in the listing
    Ingress rating
    Nowhere in the listing
    Supplied fuses
    Two holders in the set, from the title; no fuse is mentioned
    Amazon reference
    B00H8WLHIC (same reference on 6 Amazon marketplaces)
    EAN
    4082300100556
    • A genuine vehicle-parts number, which a supplier catalogue can be searched against
    • Original-equipment quality, stated by a maker that supplies vehicle manufacturers
    • Every one of the seven specification lines is absent from the listing

    Best for: Someone who will look the part number up in a proper catalogue before ordering.

    ≈ £3 / €4
    Check price on Amazon

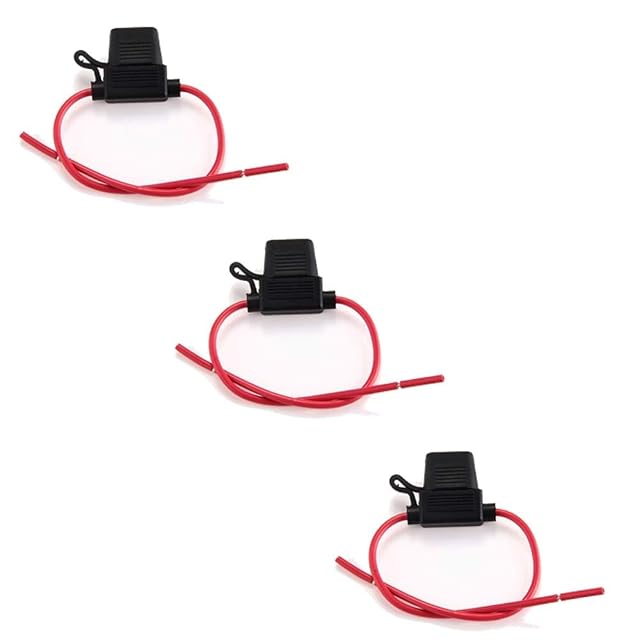

  3. HeyNana inline blade fuse holders, three in a pack

    HeyNana Three inline holders, 12 AWG lead, waterproof

    Three waterproof inline blade fuse holders on 12 AWG lead, compatible with standard blade fuses.

    Fuse standard
    Compatible with all standard blade fuses, second bullet
    Current
    Nowhere in the listing — the 12 AWG lead is stated in the title and no rating is given for the holder
    Voltage ratings including DC
    Absent — 12 volt appears in the title as an application, not as a rating
    Terminals
    12 AWG lead, from the title
    Mounting
    Inline, carried by the cable
    Ingress rating
    Described as waterproof, second bullet; no IP figure is given
    Supplied fuses
    None — three holders, from the title
    Amazon reference
    B08DXGQ55P (same reference on 5 Amazon marketplaces)
    EAN
    8429440718009
    • Three holders, which covers a small fit-out in one purchase
    • 12 AWG lead named, roughly equivalent to 4 mm²
    • Two bullets in total, one of which is the quantity

    Best for: Three small accessory circuits in a van where the fuse sets the limit.

    ≈ €5
    Check price on Amazon

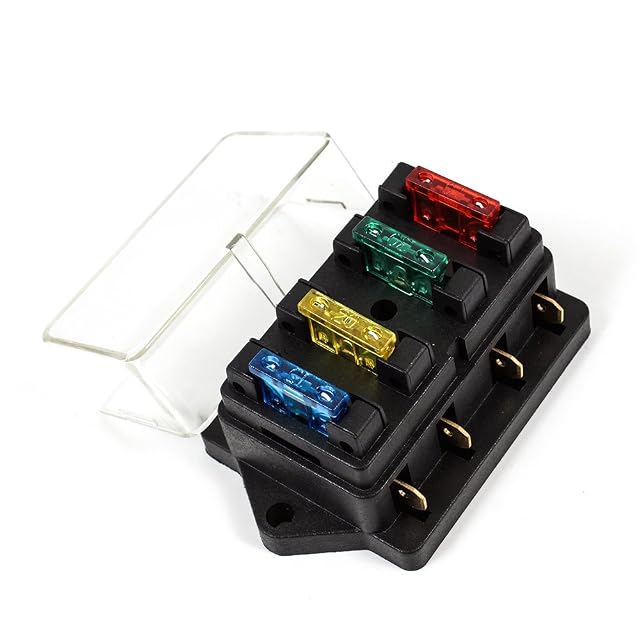

  4. AWEHIRU four-way blade fuse block with a clear lid

    AWEHIRU Four-way ATO/ATC block with four fuses, 87 × 53 × 42 mm

    A four-way ATO/ATC blade fuse block with a sealed transparent lid, taking fuses to 30 A, supplied with one each of 10 A, 15 A, 20 A and 30 A.

    Fuse standard
    ATO and ATC blade fuses, from the title
    Current
    Up to 30 A per way, third bullet
    Voltage ratings including DC
    Absent — 12 V/24 V appears in the title as an application
    Terminals
    Screw terminals; the carrier is described as robust plastic, fourth bullet
    Mounting
    Four ways in a block measuring approximately 87 × 53 × 42 mm, fifth bullet
    Ingress rating
    Splash-protected by a transparent lid with a seal, second bullet; no IP figure
    Supplied fuses
    Four: one each of 10 A, 15 A, 20 A and 30 A, first bullet
    Amazon reference
    B01N3TGOB0 (same reference on 5 Amazon marketplaces)
    EAN
    0611029693106
    • The dimensions are published, which decides whether it fits the space
    • Four fuses supplied, one per way, in useful sizes
    • Splash-protected rather than sealed, with no IP figure

    Best for: A small distribution point where four circuits leave one battery feed.

    ≈ €9
    Check price on Amazon

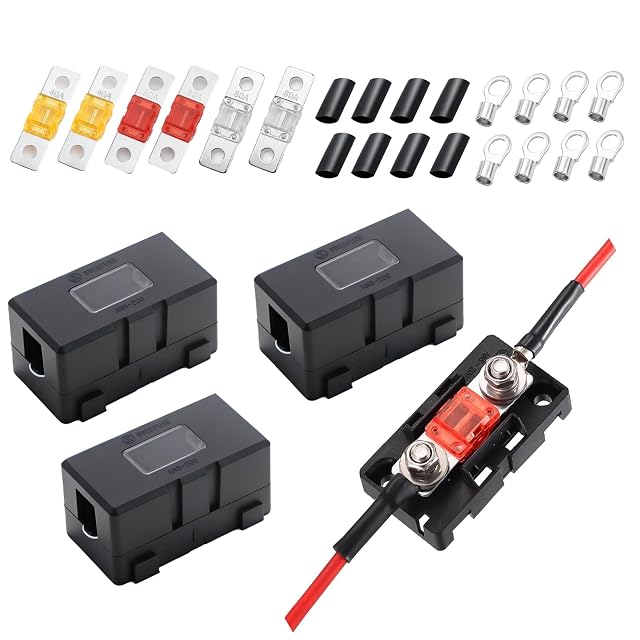

  5. JiuXinYuKeJi Midi fuse holders with Midi fuses and clamps

    JiuXinYuKeJi Four Midi holders with six Midi fuses, PA66, 52 × 28 × 25 mm

    Four Midi fuse holders in PA66 with tinned screw terminals and an inspection window, supplied with six Midi fuses of 40 A, 50 A and 80 A.

    Fuse standard
    Midi bolt-down fuses, from the title — a different family from blade fuses
    Current
    The supplied fuses run to 80 A; the holder’s own rating is not published
    Voltage ratings including DC
    Nowhere in the listing
    Terminals
    Metal screws for a stable electrical connection, with tinned parts, first and third bullets
    Mounting
    Four holders, each approximately 52 × 28 × 25 mm, fifth bullet
    Ingress rating
    A close-fitting cover for protection against external influences, third bullet; no IP figure
    Supplied fuses
    Six: two 40 A, two 50 A, two 80 A, with eight clamps, fifth bullet
    Amazon reference
    B0FCM6WS6S (same reference on 5 Amazon marketplaces)
    EAN
    0689908299282
    • Midi fuses, which cover currents above what a blade fuse holds
    • Two of each value, so a blown fuse has a replacement in the box
    • No holder rating and no voltage rating

    Best for: A battery-to-inverter feed where forty to eighty amps has to be protected.

    ≈ €10
    Check price on Amazon

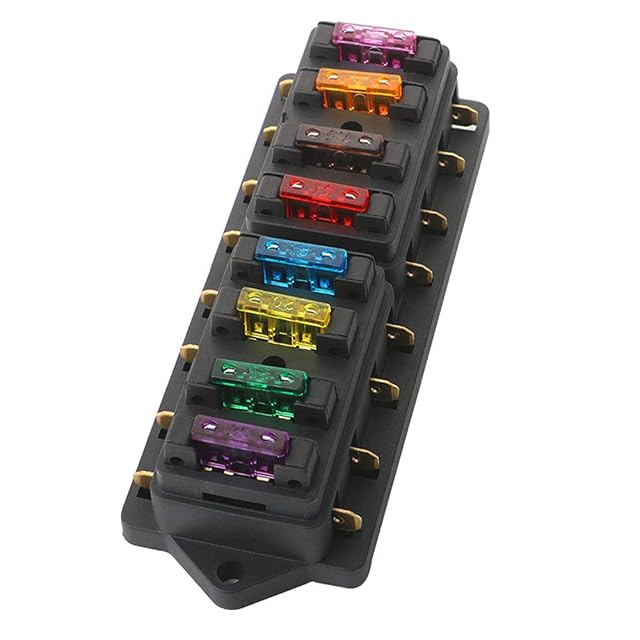

  6. QitinDasen eight-way blade fuse box with a clear cover

    QitinDasen Eight-way blade fuse box, PBT body, with ten fuses

    An eight-way blade fuse box in flame-retardant PBT with tinned brass parts and a clear polycarbonate cover, supplied with ten standard blade fuses.

    Fuse standard
    Standard blade fuses, medium size, second bullet
    Current
    The supplied fuses start at 2 A and cover the commonest values; the box rating is not published
    Voltage ratings including DC
    Absent — 12 V/24 V appears in the title as an application
    Terminals
    Cable entry from the side, first bullet; the box fixes through two pre-formed holes
    Mounting
    Eight ways, secured through two pre-formed holes, first bullet
    Ingress rating
    A clear, robust, vibration-resistant polycarbonate cover protecting against dust and moisture, fourth bullet; no IP figure
    Supplied fuses
    Ten medium blade fuses in the commonest values including 2 A, 3 A, 5 A and 7.5 A, second bullet
    Amazon reference
    B07J5JRJT4 (same reference on 6 Amazon marketplaces)
    EAN
    0741025775213
    • Two plastics named and reasoned — PBT for the body, polycarbonate for the cover
    • Eight ways, the largest count in this family
    • No box rating and no voltage rating

    Best for: A van or boat panel where eight circuits leave one feed.

    ≈ £10 / €11
    Check price on Amazon

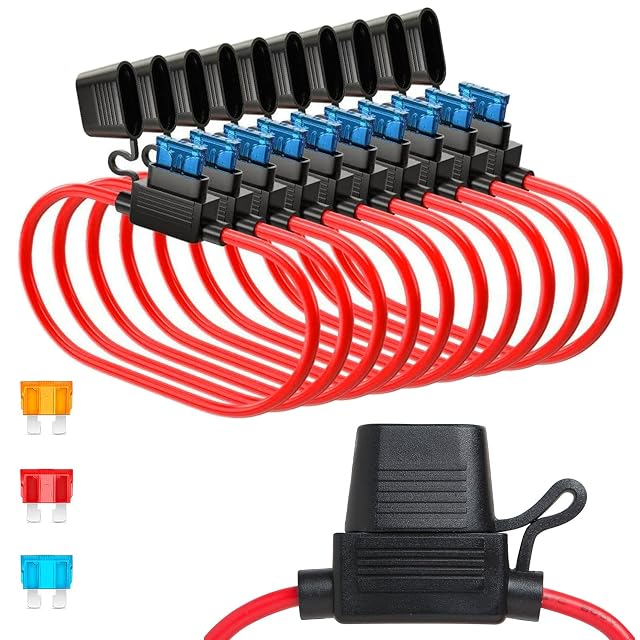

  7. GTIWUNG inline blade fuse holders, ten in a pack

    GTIWUNG Ten inline holders, 16 AWG, fully potted, 32 V max

    Ten fully potted inline blade fuse holders on 16 AWG wire, for 1 A to 20 A blade fuses at a maximum of 32 V.

    Fuse standard
    Standard blade fuses in 1 A, 2 A, 3 A, 5 A, 7.5 A, 10 A, 15 A and 20 A, second bullet
    Current
    Compatible to 20 A, second bullet
    Voltage ratings including DC
    Maximum 32 V, second bullet — THE ONLY VOLTAGE RATING PUBLISHED BY ANY HOLDER IN THIS FAMILY
    Terminals
    16 AWG wire, first bullet
    Mounting
    Inline, carried by the cable
    Ingress rating
    A fully potted body with protective covers against dust, water and damp, first and third bullets; no IP figure
    Supplied fuses
    None — ten holders, from the title
    Amazon reference
    B07KPKND2Q (same reference on 6 Amazon marketplaces)
    EAN
    0676422642922
    • A maximum voltage is published: 32 V. No other holder in this family gives one
    • The compatible fuse values are listed individually, 1 A to 20 A
    • 16 AWG is thin for the upper end of the stated range

    Best for: Ten small accessory circuits, each under twenty amps.

    ≈ £10 / €12
    Check price on Amazon

A price quoted in the text of a PowerVerdict page dates from the day that page was written; the live figure beside each product is fetched while you read and replaces it.
